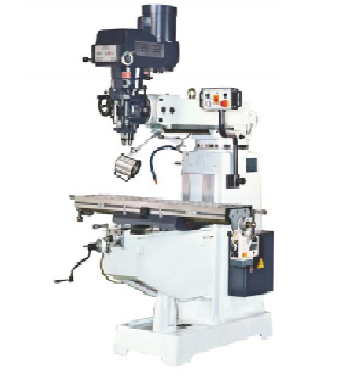

Thông số chi tiết của máy phay CNC
Product Features
5 HP AC-Freq drive head with digital RPM display and analog load meter
60-550-4500 spindle RPM (Hi/Low gear). Automatic spindle direction reversal when switching between high and low speed gear ranges
12” x 50” hardened and ground table top
NMTB-40 spindle taper
Automatic centralized lubrication system with metered check-valves
Single-phase or 3-phase power without the need for a phase converter
Hardened and Ground (Hrc-52) table surface and all slide ways
Solid box ways on saddle and columnEasy conversational programming, DRO-mode allows for full manual operations
Easy conversational programming, DRO-mode allows for full manual operations with built-in 3 axis absolute encoder glass scales
Engraving feature and DXF file import capability, USB drive and 12.1” high resolution flat panel color LCD display
Optional Accessories
Quick change tooling package (Mach-1)
NMTB-30 spindle
Flood coolant system (Built-in base)
Knee (Z-Axis) Power Feed
Air Power Drawbar
Flood Coolant System
Chip Tray
3-D Edge Finder
Knee Linear Encoder Feedback for Coupled Z-Axis Position
AMI with programmable M-functions
Specifications Table
|
Table Size
|
12" x 50"
|
|
Table Travel (X-Axis)
|
30"
|
|
Saddle Travel (Y-Axis)
|
17"
|
|
Knee Travel (Z-Axis)
|
17.5"
|
|
Quill Travel
|
4" w/ MillPwr3 G2 CNC Control
|
|
Ram Travel
|
26.75"
|
|
Spindle Motor
|
5 HP
|
|
Spindle Speed
|
AC Frequency Drive Head 60-550-4500 RPM
|
|
Spindle Taper
|
R-8
|
|
Quill Diameter
|
4.173"
|
|
Quill Feed Rate
|
0.0015" / 0.003" / 0.006" in/rev
|
|
Drilling Capacity (Manual / Power)
|
0.75" / 0.37" diameter
|
|
Boring Capacity
|
6" diameter
|
|
Milling Capacity
|
2.0 in³/min
|
|
Maximum Work Load (Center)
|
850 lbs
|
|
Spindle Nose to Table Surface
|
4" - 19.5"
|
|
Spindle Center to Column
|
5.25" - 32"
|
|
Net Weight
|
3700 lbs
|
|
Gross Weight
|
3900 lbs
|
|
Shipping Dimensions
|
72" x 72" (skid)
|
|
Power Requirements
|
220V 3-phase or 1-phase for machine 20A; Optional 440v requires 3-phase 10A; 110V dedicated for CNC control 20A
|
