Thiết bị đo lưu lượng dạng xoáy
SUMMARY

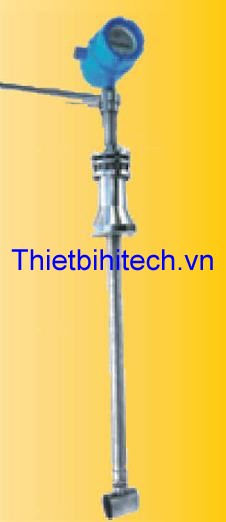

UQ960 series Vortex flowmeter is one of the vibration flowmeters. It based on "Karman"
principle and has simple configuration, and install conveniently. It can measure for
iquid, gas, and steam. U960 widely used in petroleum, chemicals, Iron, steel,
metallurgy, paper, food, urban drainage and other industries. We use new technology
for Battery function and reduce your engineering design headaches. It's a cost-effective
and high stability flowmeter.
No moving parts
FEATURE
cell power and reduce your engineering design headaches
Low power: more than one year
5 points non-linear function
High stability for Automatic cheek & adjustments
Low pressure loss
Wide application for steam, gas liquid
PRINCIPLE
The periodic shedding of eddies occurs first from one side and then from
the other side of a bluff body (Vortex-shedding body) installed
perpendicular to the pipe axis. Vortex shedding generates a so-called
"Karman Vortex Street" with altemating pressure conditions whose
frequency "f" is proportional to the flow velocity "V". The non-dimentional
Strouhal number "S" (primary head constant) describes the relationship
between Vortex shedding frequency F (in Hz) width b of the body, and
mean flow velocity v (in m/s)
F=S+v/b
The flexural vibration of the Vortex-shedding body is picked up in the
primary head via sensors and analysed in the signal converter. In the case
of the gaseous, flowing media, the vibration frequency ranges between 10
and 7000 Hz.
SPECIFICATION
DN DN 25 to DN 3000
Medium liquid, gas, steam
Pressure <2.5MPa
Output signal ElectricityL: 4-2m ADC. Pulse frequency: 0-500Hz
Communication interface RS-485, MODBUS, HART, GPRS
Environment Temperature: -40 - +60'C, Humidity. 5% - 90%
Accuracy + 0.5%, +1%
Repeatability 0.2%
Protect class IP65, IP68
Explosion-proof Exd(ib)m 11 CT3-T6, Exd 11 BT2-T5
APPLICATION
Petrochemistry
Metallurgy
Electricity
Municipal
Water treatment
