Vector network analyzer

Code: #PLANAR TR1300/1

PLANAR TR1300/1 is a 2-port, one-path vector network analyzer intended for the measurement of S11 and S21 parameters.

Tình trạng sản phẩm

Còn hàng
  • chi tiết
  • Download

PLANAR TR1300/1 Vector network analyzer



PLANAR TR1300/1 is a 2-port, one-path vector network analyzer intended for the measurement of S11 and S21 parameters. It represents an excellent solution for magnitude and phase measurements in the frequency range of 300 kHz to 1.3 GHz. With a weight of just 3.3 lbs, it provides the user with highly accurate measurements and a variety of analysis capabilities in the frequency and time domains.


  • Frequency range: 300 kHz to 1.3 GHz
  • Measured parameters: S11, S21
  • Dynamic range of transmission measurement magnitude: 130 dB
  • Measurement time per point: 150 µs
  • Up to 10,001 measurement points per sweep
  • Output power adjustment range: -55 dBm to +3 dBm
  • Dimensions: 285 x 142 x 40 mm
  • Model PLANAR-TR1300/1
    Frequency rage 300kHz~1.3GHz
    Impedance 50Ω
    Test port connector N Female
    Number of test ports 2
    Measured parameters S11 S21
    Dynamic range 130 dB
    Effective directivity 45 dB
    Measurement time 150 µs /point
    Output power range -55 dBm to +3 dBm
    Power accuracy  ±1.5 dB
    Damage level +26dBm DC3V
    Measured points 1 to 10,001
    Frequency accuracy ±6x10–6
    Measurement Bandwidths 10Hz to 30kHz
    measurement channels  4
    Data traces  4
    Data marker  16
    DATA analysis

    1.Port impedance conversion
    2.De-embedding
    3.Embedding
    4.S-parameter conversion
    5.Time domain transformation

    6.Time domain gating

    External PC system requirements Windows xp /vista / 7
    CPU > 1GHz
    RAM > 512M
    Power supply  AC 110-240V ,50/60Hz
    Weight 1.5kg
    Calibration interval  3years
    Remote control  COM/DCOM
     Warranty  3years




Sản phẩm liên quan

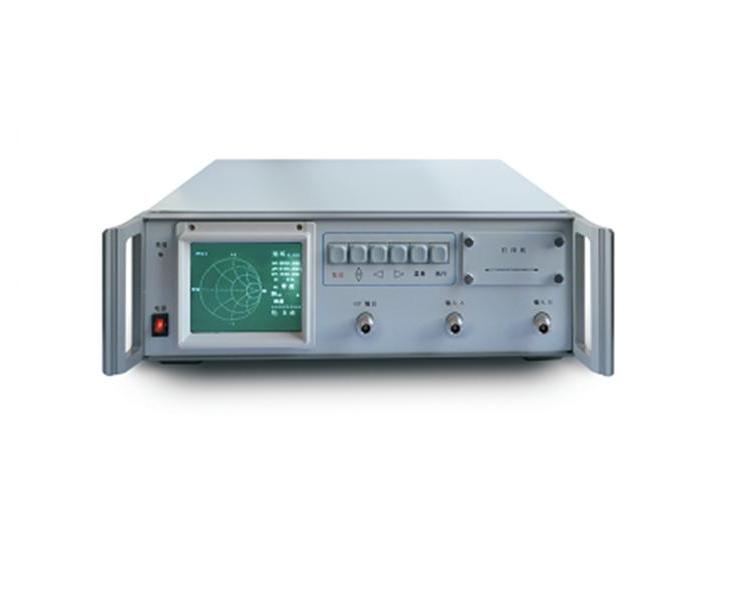

Máy phân tích mạng Protek A338,

Giá: Liên hệ

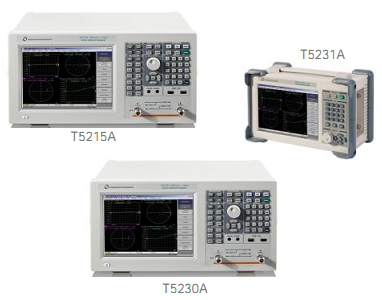

Máy phân tích mạng vector để bàn Transcom T5230A (300 kHz - 3.0 GHz)

Giá: Liên hệ

Máy phân tích mạng vector

Giá: Liên hệ

Máy phân tích mạng vector - VIA Echo

Giá: Liên hệ

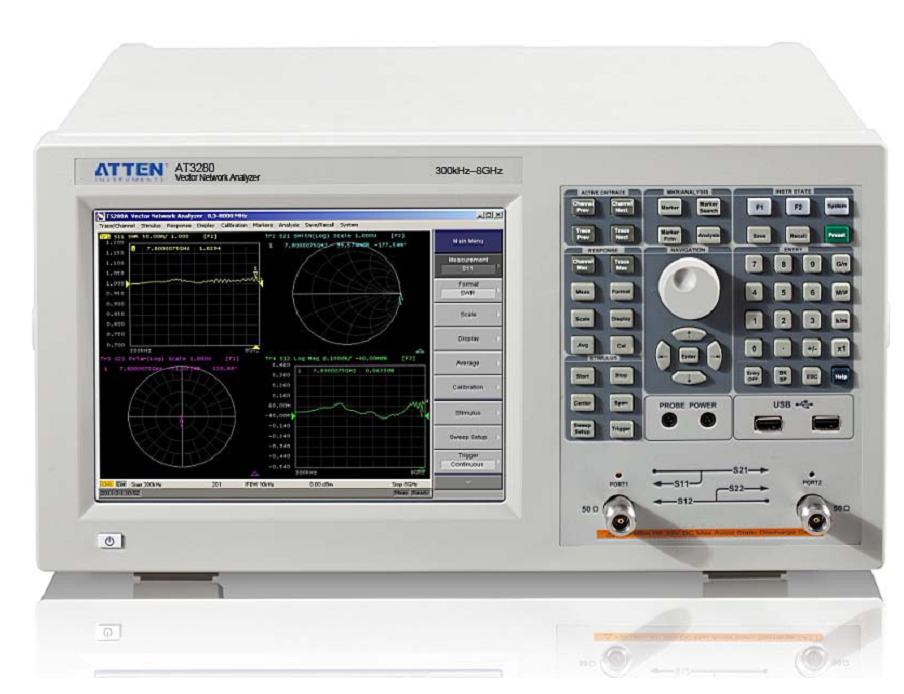

AT3280 has more wide frequency,300kHz to 8GHz,more large dynamic range, Full Two-PortsS-Parameter measurement,a high performance VNA. It has high accuracy,good stability, highmeasurement speed. it can be widely used for microwave device measurement in wirelesscommunication, radar device and semiconducto r,etc.
• Large frequency range:300kHz to 8GHz • Large dynamic range:>130dB(IFBW=10Hz),135dB typ. • Low noise level: <-125dBm(IFBW=10Hz) • Low ...

Giá: Liên hệ

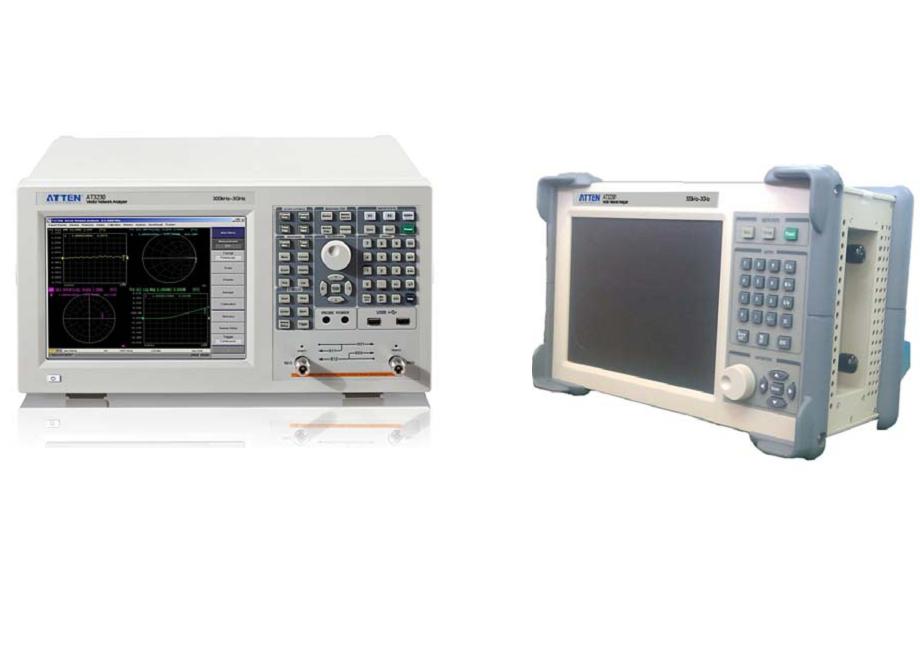

• Large frequency range:300kHz to 3GHz(AT3230/ AT3231), 300kHz to 1.5GHz(AT3215) • Large dynamic range:>125dB(IFBW=10Hz),130dB typ. • Low ...
