Đồng hồ đo lưu lượng kiểu bầu dục

Designed and realised to be used with the range of pulse meters. Remote installation is provided by simply connecting 2 wires. A large screen simultaneously displays the quantity delivered and the non resettable total. The Remote Display also comes with software applications for calibrating flow metres.
It is available both as a basic display device and as a pulse emitter. It is indispensable when the receiver only recognises discrete quantities of pulses.
The remote display is the ideal addition to our series of pulse meters wherever display and reading of the quantities delivered are indispensable, not directly at the point of installation of the flow meters, but over a distance.
With their easy interfacing management systems, pulse transmitter models connected to Remote Display extend the field of application of pulse meters.

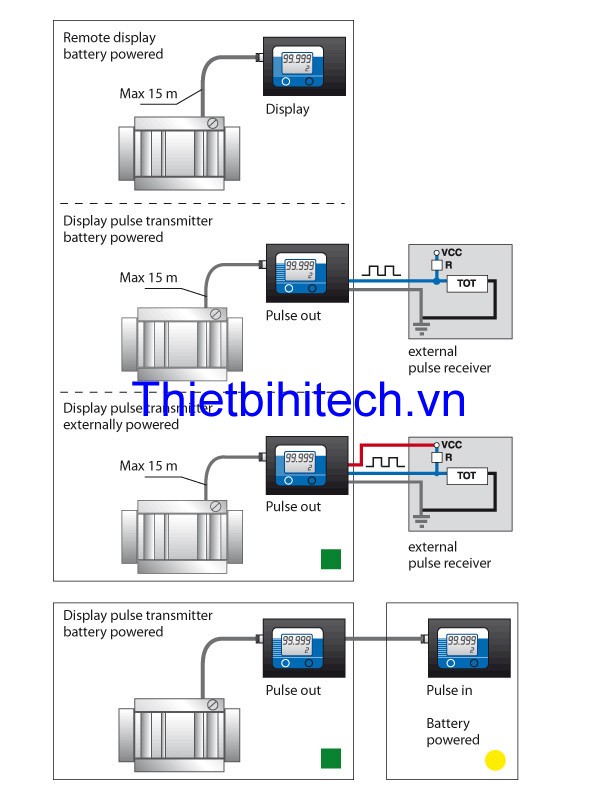

Remote display for remote control (via max. 15 m. cable) of pulse meters. The large screen displays the quantity delivered and the non resettable total. Equipped with software applications for calibrating meters. Available as both basic display device and as pulse emitter. Indispensable for receivers designed to recognise only discreet quantities of impulses. The easy interfacing management systems of the pulse transmitter models extend the field of application of pulse meters combined with remote displays.

Technical features:

Unique display with 5 digit partial Total (h=11.5 mm) with floating point (0.001 to 99999) and 8 digit non resettable Total (h = 5 mm., from 1 to 99999999 ). Battery or mains supply. Number pulses per litre set at: 1, 2, 10, 20, 50, 100. Resettable Total available. Different measurement unit settings. Low battery indication. Flow rate indication.
