Applications:
Heavy Fuel Oil, Light Diesel Oil or HSD, Heating Oils, Lubricating Oils – Easy
Burners, DG Set Feed Line / Return Line, Railway Engine - Easy
Transfer, Unloading, Loading – Easy
Gravity, Pressurized Flow - Easy
Features:
Ring Piston design – well proven
Positive displacement - it is highly accurate
Independent of viscosity and temperature
Low pressure drop - can work under gravity as well
Vibration resistant
No straight length required upstream or downstream – easy on installation
Few moving parts

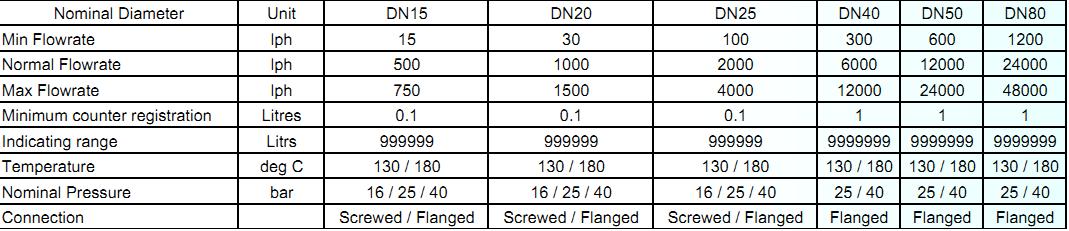

Large range: 30 ~ 48000 LPH
Options:
Mechanical read out - shall be available soon
Electronic readout, Pulse output, 2 Totalizers
Electronic read out 24 VDC powered, Analog output, Digital output, Frequency Output,
2 Totalizers - shall be available soon
Switching on flow rate - shall be available soon
Flanged / Screwed end
Pressure Ratings: 16 bar, 25 bar, 40 b
