Code: #HT-OPX-RTU
Rack-mounted unit for monitoring systems and remote measurements, or a standalone unit for labs
Can be integrated to any 3rd party systems with the help of an advanced SDK
Web-configurable via intuitive browser interface
Pluggable OTDR and PC modules for quick and easy maintenance and upgrade
Optimized for 24/7 operation, the simplest monitoring solution on the market ready to use out of the box
One module is enough to perform automatic and continuous monitoring of the optic line and control OPX-1xN optical switch
Several modules can be joined together with the help of Fiberizer Cloud to monitor complex networks
Tình trạng sản phẩm
 |
Còn hàng |
|
Base Unit
Chassis: Rack-mount, 1U/19" size
Connection with PC: USB, RJ45 (TCP/IP)
Power supply: AC (210V) / DC (70V)
Memory (for PC): built-in SSD hard drive
Dimensions: 220 x 168 x 45mm
Weight: 1.5 kg

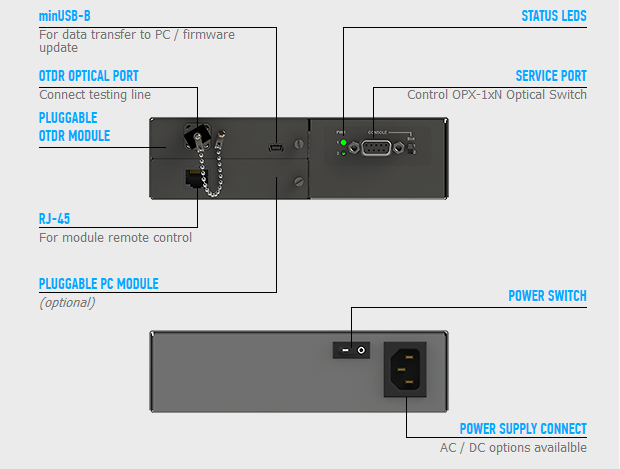

Modular design
-
Rack mount holder available for 1U /19" size
-
24/7 optimized deisgn
-
Pluggable modules
-
Interfaces to access device locally and remotelly
OTDR MODEL
|
Parameters
|
Singlemode
|
Multimode
|
|
Attenuation resolution, dB
|
0.001
|
|
Distance measurement accuracy, m
|
±(0.5+resolution +5×10-5×L)
|
|
Attenuation measurement accuracy
|
0.05 dB/dB
|
|
Sampling resolution, m
|
0.16 .. 7.6
|
|
Sampling points
|
up to 128 000
|
|
Optical connectors (changeable)
|
FC, ST, SC
|
|
Pulsewidth, ns
|
6, 25, 100, 300, 1000, 3000, 10000, 20000
|
|
Distance range, km
|
5, 10, 20, 40, 80 120, 160, 240
|
|
Pro 15
|
|
Wavelength, nm
|
1310/1550
|
|
|
Dynamic Range, db
|
39/36
|
|
|
Event/Attenuation Dead Zone
|
1/4
|
|
|
Pro 85
|
|
Wavelength, nm
|
|
850/1300
|
|
Dynamic Range, db
|
|
28/30
|
|
Event/Attenuation Dead Zone
|
|
1/4
|
|
Pro 5
|
|
Wavelength, nm
|
1550
|
|
|
Dynamic Range, db
|
36
|
|
|
Event/Attenuation Dead Zone
|
1/4
|
|
|
Pro 6 Live*
|
|
Wavelength, nm
|
1625
|
|
|
Dynamic Range, db
|
39 |
|
|
Event/Attenuation Dead Zone
|
1/4 |
|
|
* With filtered port for live fiber testing
|
|
Prom 15
|
|
Wavelength, nm
|
1310/1550
|
|
|
Dynamic Range, db
|
43/43
|
|
|
Event/Attenuation Dead Zone
|
2/5
|
|
|
Prom 5
|
|
Wavelength, nm
|
1550
|
|
|
Dynamic Range, db
|
43
|
|
|
Event/Attenuation Dead Zone
|
2/5
|
|
|
Prom 6 Live*
|
|
Wavelength, nm
|
1625
|
|
|
Dynamic Range, db
|
41 |
|
|
Event/Attenuation Dead Zone
|
2/5 |
|
|
* With filtered port for live fiber testing
|
