Compact high-end handheld OTDR

Code: #HT-OPX-350

Really compact high-end OTDR. Beginners mode with fully automated trace diagnostics, one-button setup and events detection. FTTx/PON optimized parameters, perfect dead zones for 1xN splitter and for normal events with reflection. Live OTDR port for in-service measurements and live fiber detection with embedded power meter. Optional power meter, light source, fiber inspection probe and VFL. Flexible connectivity with our Fiberizer Desktop and Cloud software for advanced data analysis and reporting.

Tình trạng sản phẩm

Còn hàng
  • chi tiết
  • Download

Base Unit

Display 3.5" :   TFT 16-bit color (*touchscreen)
Connection with PC:    USB, ActiveSync, WMDC
Power supply:   Li-Ion Battery 3100mAh (9 hours)
Dimensions:  163 x 93 x 51 mm (* w/o rubber boot)
Weight:  0.7 kg

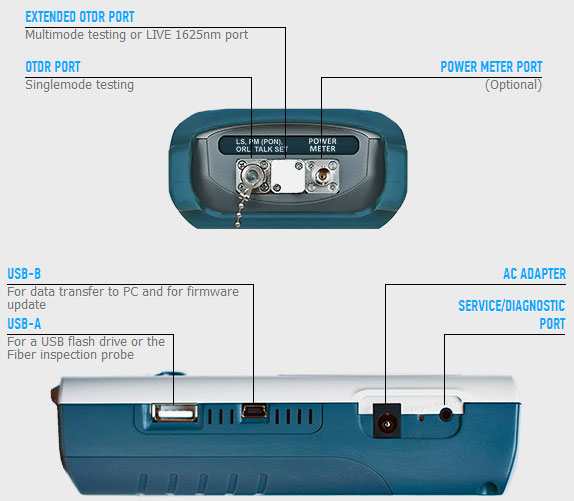

Compact and Rugged design

  • USB-A Host Interface for USB flash drives and fiber inspection probe connection
  • Changeable optical adaptors (SC/FC/ST/LC)
  • Rugged and easy to use in the field
  • Easy to replace battery right in the field if needed

OTDR MODEL

Parameters

Singlemode

Multimode

Attenuation resolution, dB

0.001

Distance measurement accuracy, m

±(0.5+resolution +5×10-5×L)

Attenuation measurement accuracy

0.05 dB/dB

Sampling resolution, m

0.16 .. 7.6

Sampling points

up to 128 000

Optical connectors (changeable)

FC, ST, SC

Pulsewidth, ns

6, 25, 100, 300, 1000, 3000, 10000, 20000

Distance range, km

5, 10, 20, 40, 80 120, 160, 240

Base 15

Wavelength, nm

1310/1550



Dynamic Range, db

27/25



Event/Attenuation Dead Zone

2/10



Base 85

Wavelength, nm



850/1300

Dynamic Range, db



22/22

Event/Attenuation Dead Zone



2/10

Optima 15

Wavelength, nm

1310/1550



Dynamic Range, db

36/34



Event/Attenuation Dead Zone

1/4



Optima 16 Live*2 Ports

Wavelength, nm

1310/1550

1625



Dynamic Range, db

36/34

38



Event/Attenuation Dead Zone

1/4

1/4



* With filtered port for live fiber testing

Optima 14

Wavelength, nm

1310/1490/1550



Dynamic Range, db

36/34/34



Event/Attenuation Dead Zone

1/4



Optima 17 Live*2 Ports

Wavelength, nm

1310/1490/1550

1625



Dynamic Range, db

36/34/34

38



Event/Attenuation Dead Zone

1/4

1/4



* With filtered port for live fiber testing

Optima 85

Длина волны, нм



850/1300

Dynamic Range, db



25/27

Event/Attenuation Dead Zone



1/4 (*850nm - 2/10)

OPTIMA QUAD2 Ports

Wavelength, nm

1310/1550

850/1300

Dynamic Range, db

36/34

25/27

Event/Attenuation Dead Zone

1/4

1/4 (*850nm - 2/10)
