Mobile Test Platform

Code: #HT-IIT-9000

Rugged platform with various of pluggable modules (OTDR, PM, CD) Advanced software allows convenient analysis on big LCD with touch screen Remote controllable via USB or TCP Network FTTx/PON optimized parameters. Perfect deadzones for 1xN splitter as well as normal events with reflection. Live OTDR port for in-service measurements and Live fiber detection with embedded power meter Flexible connectivity with Fiberizer Desktop and Cloud software for advanced data analysis and reporting.

Tình trạng sản phẩm

Còn hàng

chi tiết
Download

Base Unit

Display:   7.5" TFT 16-bit color touchscreen
Connection with PC:   USB, Ethernet
Power supply:   Li-Ion Battery 3400mAh (10 hours)
Memory:   built-in 128 Mb, USB Memory Stick
Dimensions:   310 x 254 x 57mm
Weight:   3.5 kg

Rugged design

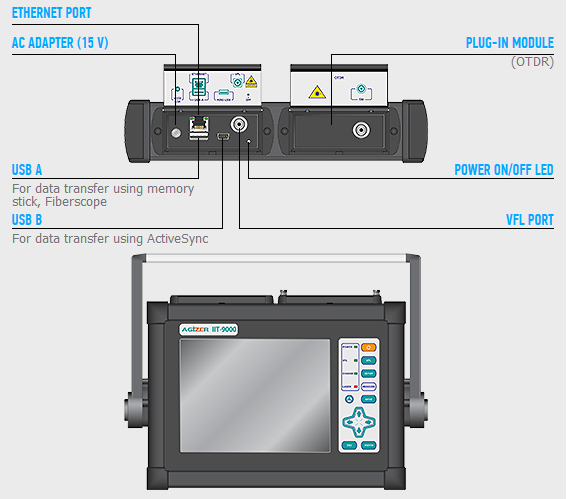

USB-A Host Interface for USB flash drives and fiber inspection probe connection
Rugged and easy to use in the field

OTDR MODEL

Parameters

Singlemode

Multimode

Attenuation resolution, dB	0.001
Distance measurement accuracy, m	±(0.5+resolution +5×10^-5×L)
Attenuation measurement accuracy	0.05 dB/dB
Sampling resolution, m	0.16 .. 7.6
Sampling points	up to 128 000
Optical connectors (changeable)	FC, ST, SC
Pulsewidth, ns	6, 25, 100, 300, 1000, 3000, 10000, 20000
Distance range, km	5, 10, 20, 40, 80 120, 160, 240

Pro 15
Wavelength, nm	1310/1550
Dynamic Range, db	39/36
Event/Attenuation Dead Zone	1/4

Pro 16 Live*2 Ports
Wavelength, nm	1310/1550 1625
Dynamic Range, db	39/36 39
Event/Attenuation Dead Zone	1/4 1/4
* With filtered port for live fiber testing

Pro 14
Wavelength, nm	1310/1490/1550
Dynamic Range, db	39/35/36
Event/Attenuation Dead Zone	1/4

Pro 17 Live*2 Ports
Wavelength, nm	1310/1490/1550 1625
Dynamic Range, db	39/35/36 39
Event/Attenuation Dead Zone	1/4 1/4
* With filtered port for live fiber testing

Pro 85
Wavelength, nm		850/1300
Dynamic Range, db		28/30
Event/Attenuation Dead Zone		1/4

Pro 5
Wavelength, nm	1550
Dynamic Range, db	36
Event/Attenuation Dead Zone	1/4

Pro 6 Live*
Wavelength, nm	1625
Dynamic Range, db	39
Event/Attenuation Dead Zone	1/4
* With filtered port for live fiber testing

Pro-QUAD*2 Ports
Wavelength, nm	1310/1550	850/1300
Dynamic Range, db	39/36	28/30
Event/Attenuation Dead Zone	1/4	1/4

Prom 15
Wavelength, nm	1310/1550
Dynamic Range, db	43/43
Event/Attenuation Dead Zone	2/5

Prom 16 Live*2 Ports
Wavelength, nm	1310/1550 1625
Dynamic Range, db	43/43 41
Event/Attenuation Dead Zone	2/5 2/5
* With filtered port for live fiber testing

Prom 14
Wavelength, nm	1310/1490/1550
Dynamic Range, db	43/38/43
Event/Attenuation Dead Zone	2/5

Prom 17 Live*2 Ports
Wavelength, nm	1310/1490/1550 1625
Dynamic Range, db	43/38/43 41
Event/Attenuation Dead Zone	2/5 2/5
* With filtered port for live fiber testing
