- Input voltage : 230 V single phase 50 Hz. AC supply.
- Output voltage : 8 & 4 volts.
- Output current 1000/2000 Amps.
- Capacity : 6 KVA.
- Cooling : Natural air cooled transformer and regulator.
- Duty : Continuous

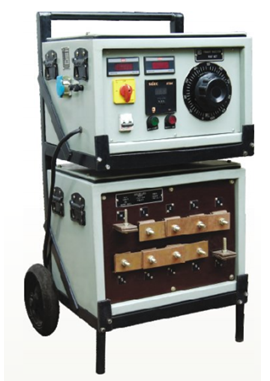

The unit will consist of the following
- Step down transformer : A double wound transformer is used for supply high Current and low voltage for testing.
- Auto Transformer : A stepless auto transformer is used for controlling output voltage and current from zero to maximum.
- Amperemeter : 96 sq.mm. Multirange Amperemeter to indicate the output current through CT having range 1000/2000 Amp.
- Line On Indicator : Neon lamps indicators are provided for input & output indication.
- Main ON/OFF switch : Double pole ON/OFF is provided for input ON and OFF.
- Output : Output is brought on copper bus-bars having Bus Bar for series and parallel connection.
All the unit shall be housed in MS sheet body supported with angle iron frame.
- Weight : approximately 90 kg
- Origin: India
|
