Kính hiển vi luyện kim (tổng quan)

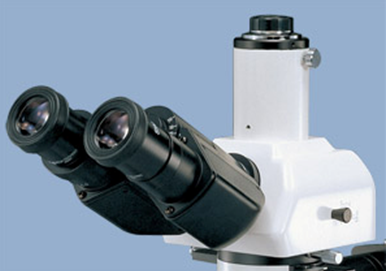

VIEWING HEADS
Model MA815 is the Siedentopf-type binocular head and Model MA816 is the trinocular head for camera integration. Each head has the eyetubes inclined at 30° with the left eyetube having graduated diopter settings. The interpupillary distance is adjustable between 53mm .PNG)
- 75mm. An 80/20 beamsplitter for the trinocular tube can be engaged for photo work. The optional Ergonomic Viewing Head has the inclination adjustable from 10 to 50 degrees to fit any size user.
EYEPIECES
10X Super Widefield High Eyepoint eyepieces F.N.22 are standard, and 15X and 20X eyepieces are available as an option. A Super .PNG)
Widefield High Eyepoint 10X focusable eyepiece that accepts 25mm reticules is also available.

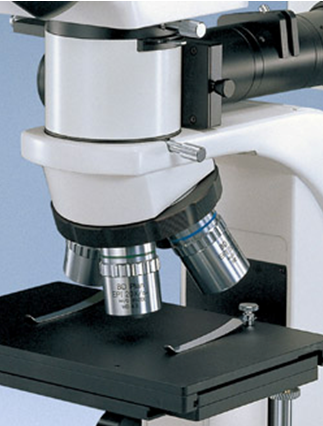

OBJECTIVE CHANGER
The smooth-operating, ball bearing mounted, quadruple nosepiece provides effortless objective changes.
OBJECTIVES
.PNG)
Meiji Techno offers an assortment of Plan Epi Infinity Corrected objectives for Brightfield/Darkfield observation.
STAGE
Ceramic coated left or right-handed, flat top stage measures 191mm x 126mm and travels: 100mm(X) x 100mm(Y). Ergonomically positioned coaxial drop down controls.
ILLUMINATION
Powerful 50 watt halogen illumination provides enhanced image quality and brightness for the observation of metallurgical specimens.
Thông số cơ bản kính hiển vi luyện kim
|
Head
|
Illumination
|
Eyepieces
|
Objectives
|
Stage
|
|
Bino.
|
12V, 50W Vertical Koehler
|
SWH10x FN22
|
Plan Epi BD 5x, 10x, 20x, 50x
|
Ceramic Coated Fixed Flat-top left or right-handed controls
|
xuất xứ: Nhật Bản
